Product Introduction

4~16Ch 12G-SDI Optical Fiber Transceiver

1、Product Introduction
This 4~16-channel 12G-SDI optical fiber transmitter and receiver, extends 4~16 channels of 6G-SDI, 3G-SDI, HD-SDI, SD-SDI signals over optical fiber to 1~80km, supports 1-channel 1000M Ethernet over single core optica fiber.
Our multiple SDI extender over fiber optic cable is all produced by CWDM, uncomressed solution so that we could do multiple SDI signal with data, external audio, Ethernet and other functions over single core fiber cable.Our SDI extenders could meet all broadcast TV transmission quality level. We welcome any OEM service.

2、Features
? Support 4~16-channel 12G-SDI over one-core optical fiber 1~80KM, CWDM
? Support 1-ch 1000M Ethernett (optional);
? Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS Stream;
? Range from 19.4 Mb/s to 11.88 Gb/s, Support clock recovery;
? Support SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,2081,2082, DVB-ASI, DVB-SSI and other Telecom/Datacom standard;
? Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
100m automatic cable equalization, all the 11.88 Gb/s rate below(Belden 1694A)
? WDM,CWDM,DWDM, optional;
? Optional network management system;
? LED status indicators monitor the critical parameters;
? Support hot swap;
? 19” 1U rack mounting;
? Power supply: 110~240V AC, Dual power supply optional.

3、Specification
a) Serial TV, BNC input
12G-SDI input：4~16 channel
Signal standard:SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,
2081,2082, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -11.88Gb/s)
Signal level: 800mV nominal
Reflection loss:>15DB
Timing Jitter: <2UI（<168ps）
Alignment jitter: <0.3UI（<28PS）
Rise/drop time: 200ps nominal
Connector：75Ω BNC
Overshoot：10% amplitude

b) Optics
Channel: 1
Type: Single-mode (multimode optional)
Wavelength: CWDM,1260~1620nm, or WDM/DWDM optional
Output Optical Power: -3-0dBm
Rx sensitivity: -16dBm
Dynamic Range: >-13dBm
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/PC or ST/PC

c) Serial TV, BNC output (EO/OE)
12G-SDI output： 4~16 channel
Signal standard: SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,
2081,2082, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -11.88Gb/s)
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Reflection loss: >15DB
Timing Jitter: <2UI（<168ps）
Alignment jitter: <0.3UI（<28PS）
Rise/drop time: 200ps nominal
Connector:75Ω BNC
Overshoot：10% amplitude

d) Gigabit Ethernet
Interface: RJ45
Mpbs: 1000M
Protocol Standard: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x Flow control

e) Data (Optional)
Channel: 1-4
Data format: RS-485 (full/half duplex) and support NRZ, RZI and Manchester
Data rate: DC to 100 Kb/s
Mode: Full/half duplex
Connector: Wire connecting terminal

f) Power and environmental indication
Operating temperature: 0°C~+50°C
Pressure: 90VAC to 245VAC
Power: 12 W
EMI/RFI: Meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours

g) Other
Dimension: 1U standard rack mounting

Weight: 1.5~2Kg

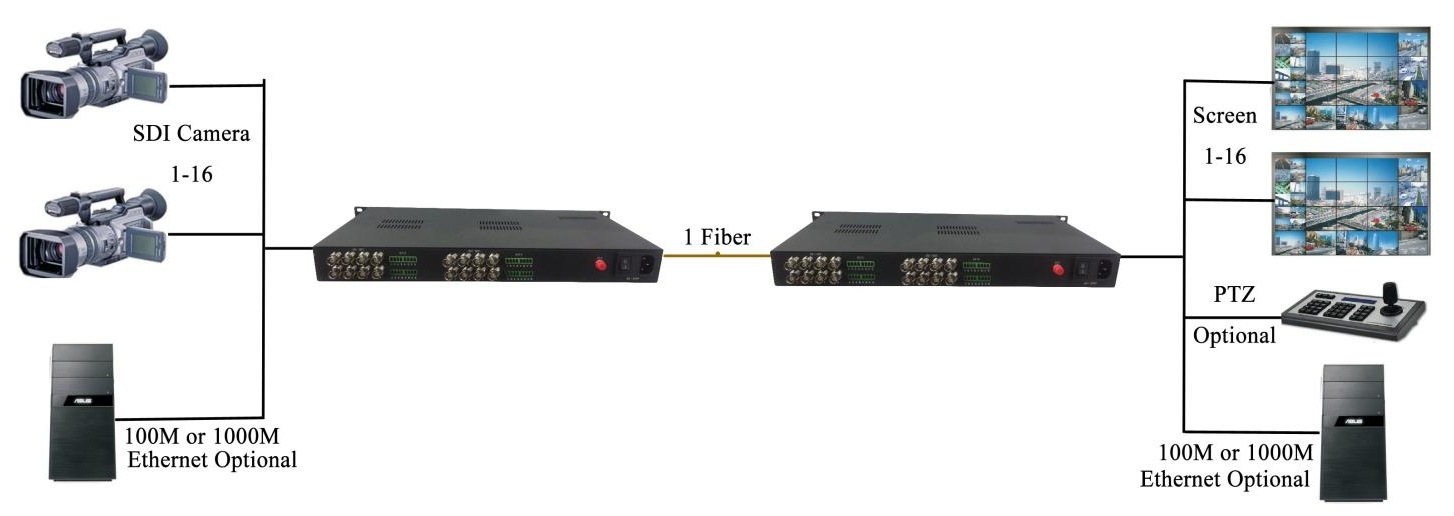

4、Topological Graph

5、Application
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links.....

6、Ordering Information
8-ch 12G/3G/HD/SD-SDI Optical Fiber Transmitter+Receiver:
·HC1208P-T
Transmitter: 8-ch 12G/3G/HD/SD -SDI input, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount
·HC1208P-R
Receiver: 8-ch 12G/3G/HD/SD -SDI output, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount
·HC120404P-TR
Transceiver: 4-ch 12G/3G/HD/SD-SDI input, 4-ch 12G/3G/HD/SD -SDI output, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount

16-ch 12G/3G/HD/SD-SDI Optical Fiber Transmitter+Receiver:
·HC1216P-T
Transmitter: 16-ch 12G/3G/HD/SD -SDI input, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount
·HC1216P-R
Receiver: 16-ch 12G/3G/HD/SD -SDI output, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount.
·HC120808P-TR
Transceiver: 8-ch 12G/3G/HD/SD-SDI input, 8-ch 12G/3G/HD/SD-SDI output, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km,1U rack mount.
